A1040 MIRA 3D PRO
Ultrasonic Concrete Testing

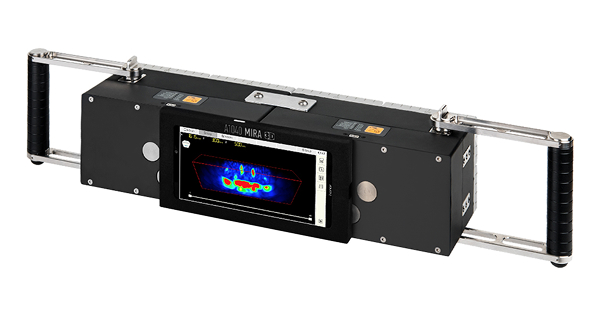

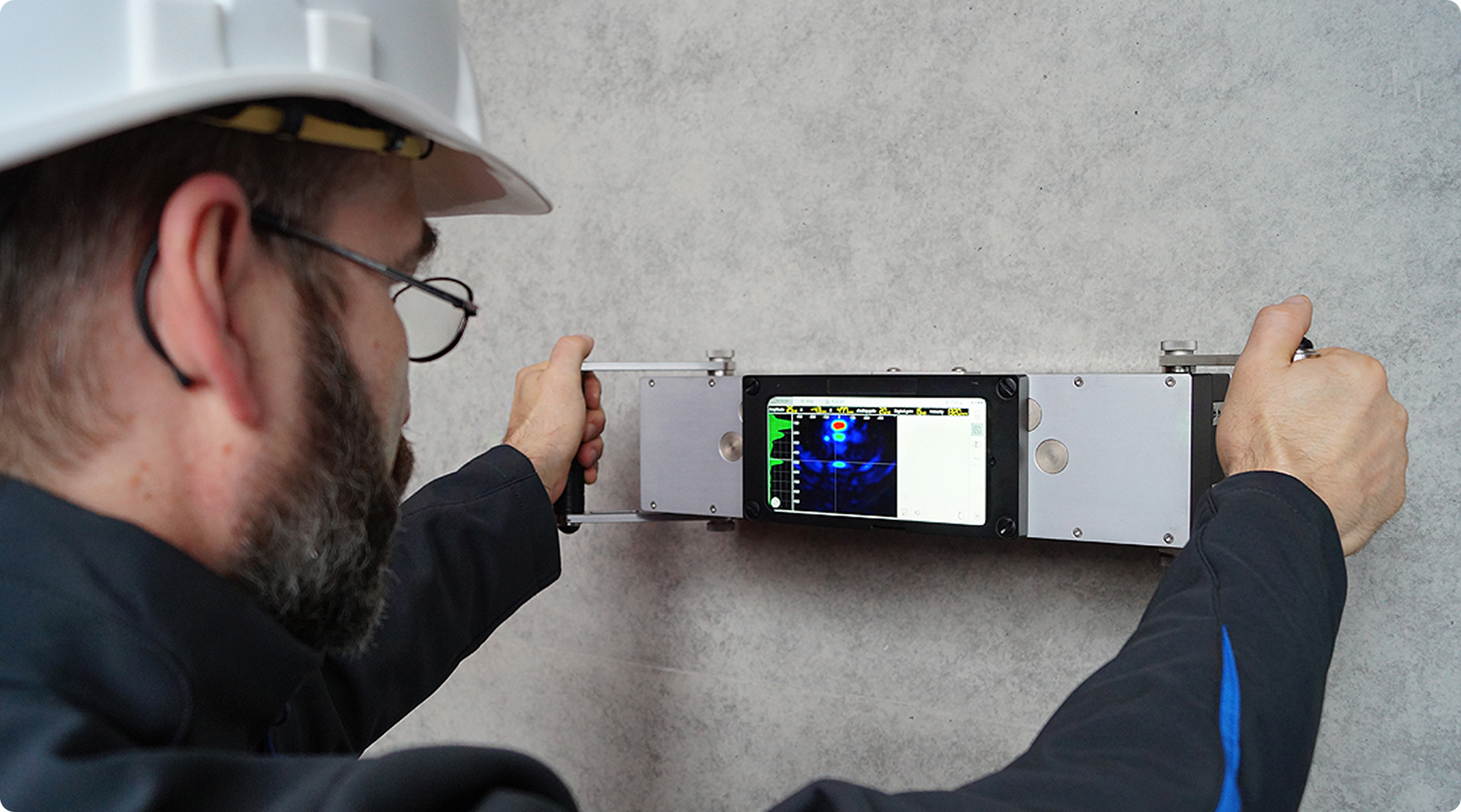

A1040 MIRA 3D PRO – rebar, flaw and thickness detector for concrete
The high-end ultrasonic tomograph for quality assessment of concrete structures: thickness measurement up to several meters, rebar localization, flaw detection with ultrasound
Unbeatable penetration depth of up to 6 meter / 20 feet
Real-time 3D Imaging via three-dimensional FMC/TFM
Up to 10 hours of continuous operation on a single battery charge
Key applications and use cases of MIRA 3D Pro
The ultrasonic tomograph A1040 MIRA 3D Pro is the leading-edge solution for ultrasonic testing of highly scattering materials, such as concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials.

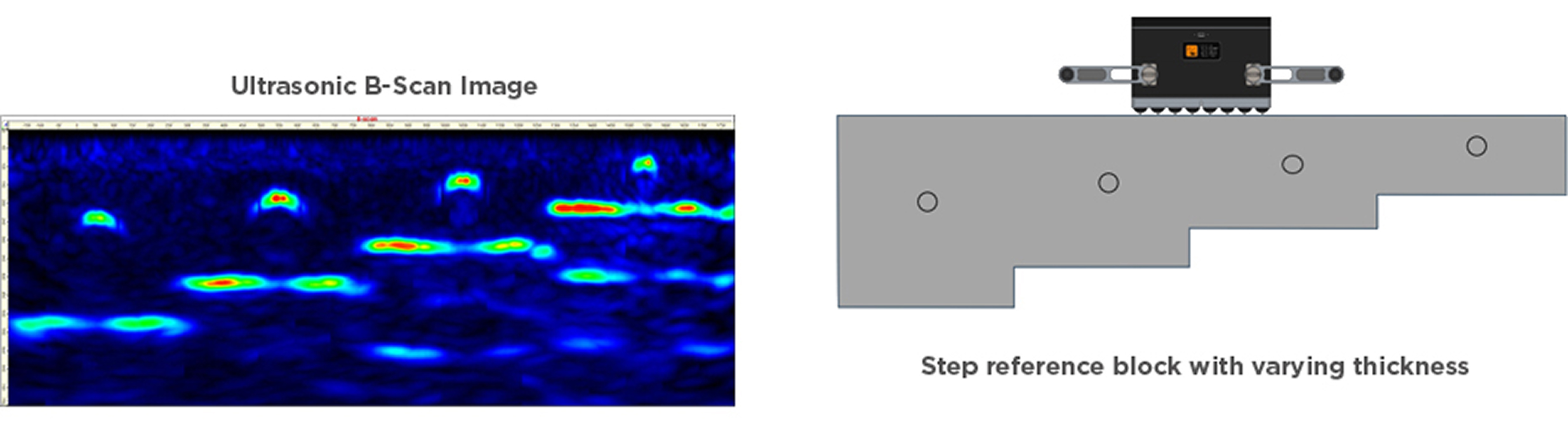

Thickness measurement by one-side access
The A1040 MIRA 3D Pro offers a unique advantage in accurately measuring material thickness even when access is limited to one side. This feature is particularly valuable for scenarios where accessing both sides of the material is impractical or impossible.

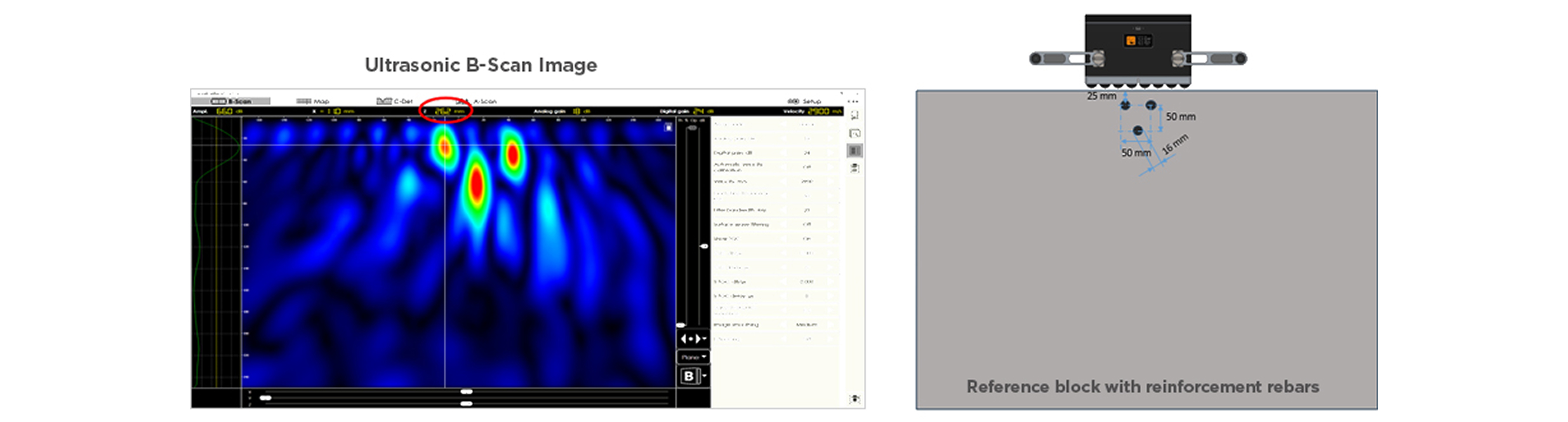

Localization of reinforcement rebars and other structural elements
The A1040 MIRA 3D Pro excels in accurately identifying and mapping reinforcement elements like rebars, tendon ducts, anchors, hollow pipes, cables, and other structural components within materials like concrete and reinforced concrete. Notably, it can even detect elements located beyond the rebar layers.

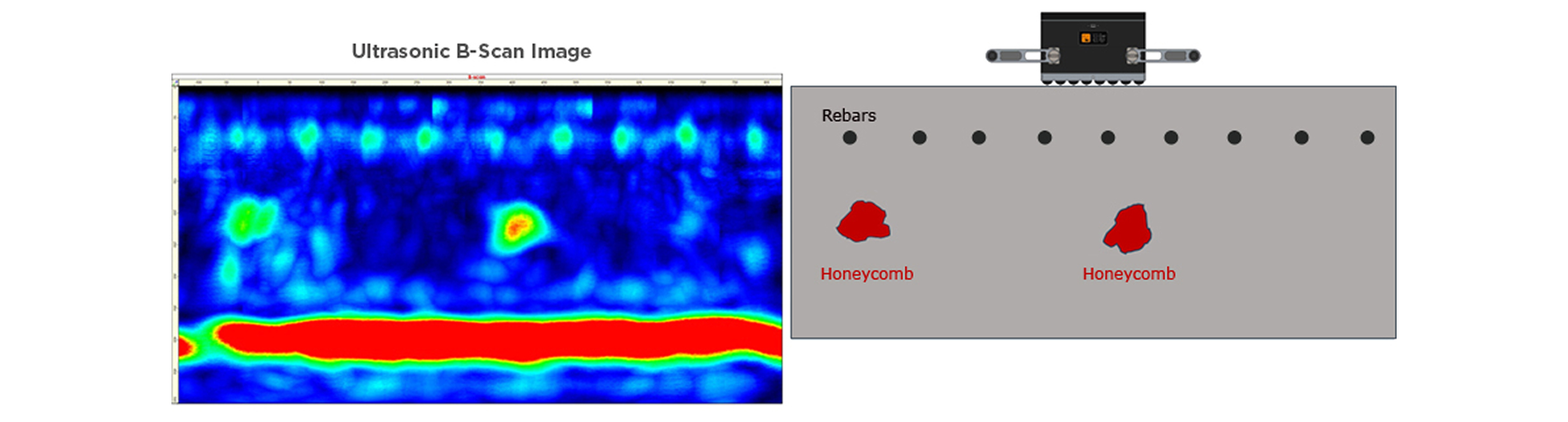

Detection of material voids
The tool is adept at identifying and visualizing three-dimensional voids within materials. This includes cavities, inclusions, honeycombs, and cracks. Its capability to estimate their position and size provides crucial insights for structural integrity assessments.

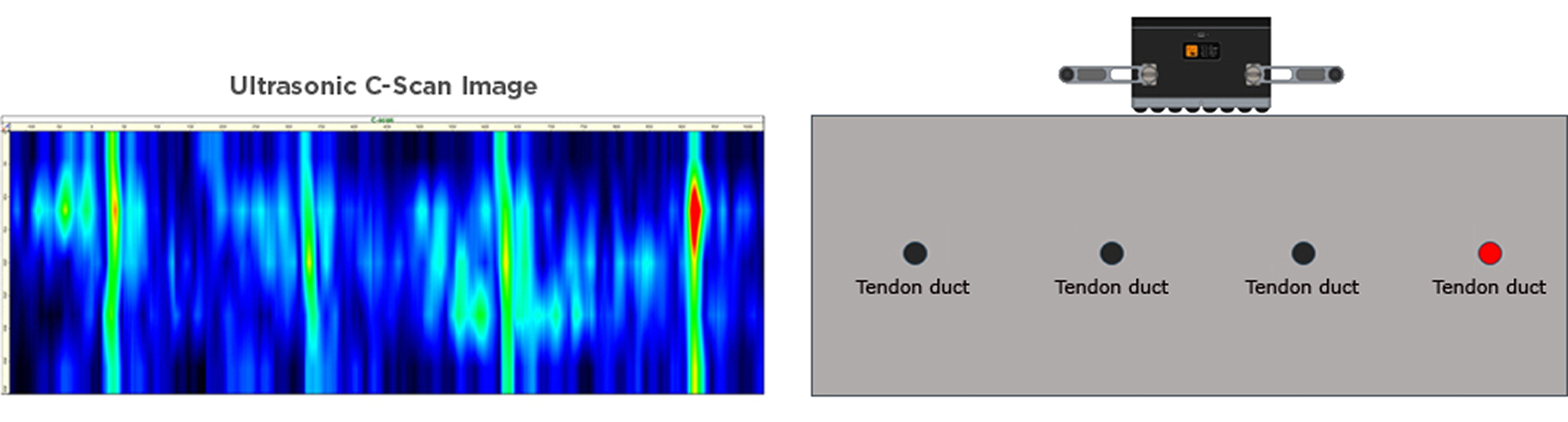

Detection of grouting defects in tendon ducts and grouting couplers
The instrument specializes in identifying defects related to grouting in tendon ducts and grouting couplers. This is essential for ensuring the integrity and safety of structures where proper grouting is critical, such as in post-tensioned concrete.

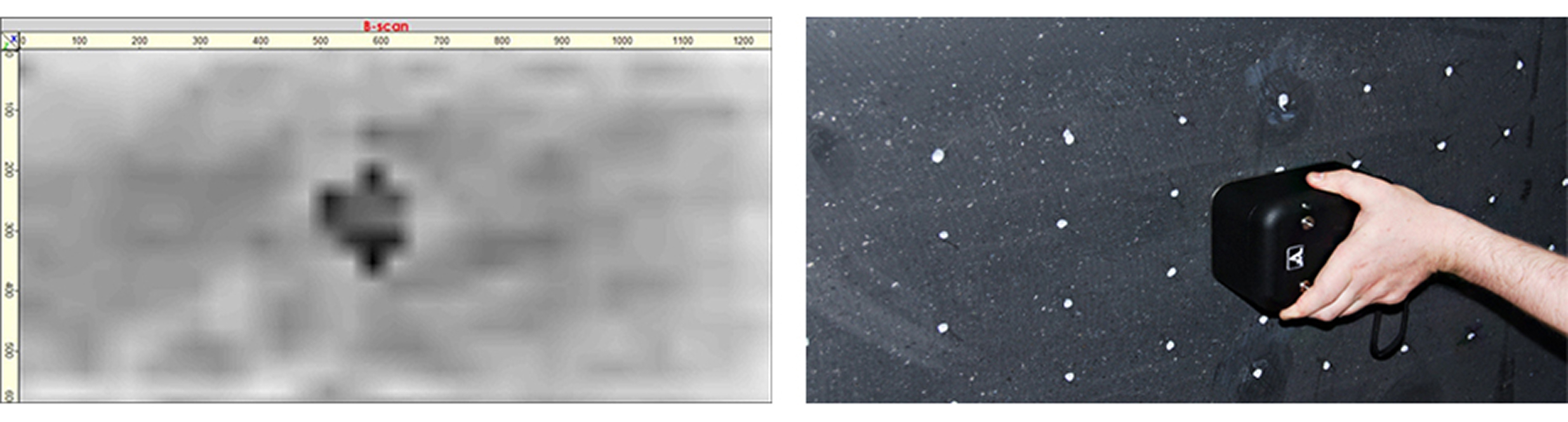

Assessment of fireproof stones
It also provides a reliable means to assess the condition of fireproof stones This capability is crucial in applications where fire resistance is a primary concern, ensuring that the stones maintain their intended protective properties.
Ensure accurate and precise concrete testing
results with MIRA 3D
The ultrasonic tomograph A1040 MIRA 3D is the leading-edge solution for ultrasonic testing of highly scattering materials, such as concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials.
Strongly reinforced concrete objects
Provides detailed subsurface imaging
Assists in inspecting pillars
Effectively assesses structures
Effectively assesses structures
See Beyond the Surface
Achieve incomparable penetration depth of up to 2m/6.5ft, revealing hidden details within concrete structures.
Uninterrupted Assessments
Enjoy up to 10 hours of continuous operation on a single battery charge, ensuring you complete multiple tests without interruption.
Cross-Platform Flexibility
Whether you prefer ANDROID or WINDOWS, our application software is included in the standard delivery set, offering compatibility and convenience.
Cover More Ground
With a maximum square coverage of 10x10m²/33x33sq.ft, you can assess larger areas efficiently and comprehensively.
Effortless Control
Take command remotely with ease. Control the unit via Tablet-PC or Laptop for stand-alone applications, ensuring a seamless testing experience.
Immediate Insights
Experience real-time 3D imaging for instant visualization and on-the-spot decision-making.
Description

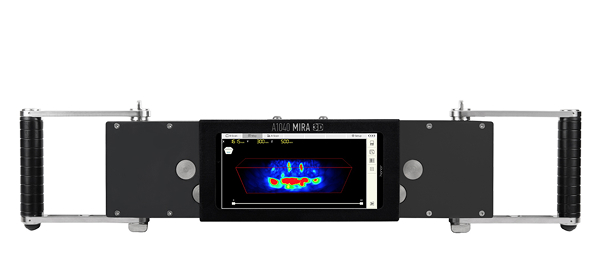

A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable for manual and automated assessment of concrete structures.

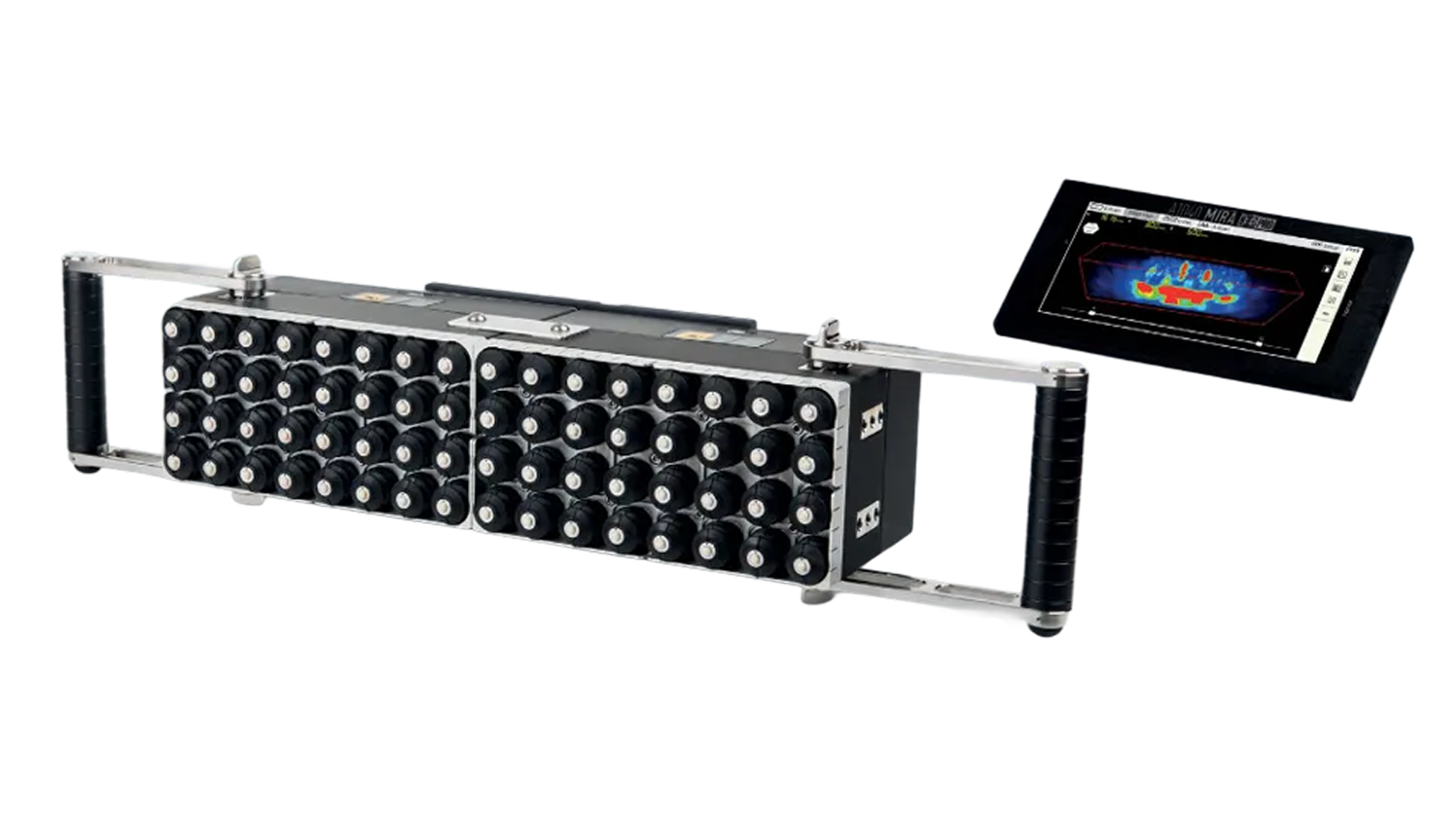

The instrument consists of a lightweight body with 4 x 8 Active Dry-Point-Contact transducers with integrated pulser-receiver circuits and parallel DAQ.
With special transmitting techniques such as E-Boosting, an outstanding penetration depth has been achieved even by using the instrument’s relatively small active aperture.
MIRA NEO DESKTOP software for remote unit control and 3D visualization & analysis of Big Data is an essential part of the instrument delivered in the standard delivery set.
Discover How MIRA 3D Pro Works
The ultrasonic tomograph A1040 MIRA 3D Pro is the best solution for ultrasonic testing of highly scattering materials, such as concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials.
Scheme of work
Instrument calibration on the inspection object for achieving maximal sensitivity and resolution.
Evaluation of collected inspection results and generating report for the customer.
Evaluation of collected inspection results and generating report for the customer.
Instrument type
Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array
Power supply
Exchangeable Li-Ion battery 18650
Battery operation time
up to 10 hours
Number of channels
64 (extendable to 96, 128 etc.)
Maximum dimensions of one unit without handles
400x125x100 mm (15,8 x 4,9 x 3,9 inch)
Number of independent elements in the matrix transducer aperture
64 (extendable to 96, 128 etc.)
Operating conditions:
Type of the ultrasonic transducers
Active dry point contact (A-DPC®) transducers with ceramic wear proof tips and integrated pulser-receiver electronics
air temperature range
from -20 to + 50°С (from 25 to 122°F)
relative air humidity at +35°С / 95°F, max.
95 %
Bandwidth
from 10 to 90 kHz
Average service life, min.
5 years
Material sound velocity range
from 1.000 to 4.000 m/s (from 40 to 157 inches/s)
Maximum penetration depth in reinforced concrete
over 4.000 mm (157 inch)
Delivery kit
01
Electronic unit A1040 MIRA 3D Pro with 32 x A-DPC® transducers
06
Exchangeable Li-Ion battery 18650
01
Operating Manual
01
Reference block for regular functional tests
02
Data cable USB Type C
01
Hard case
01
INTROVIEW® Pro Software with 12 Months Update & Support service
02
Type C power supply
01
Warranty certificate 24 months
Tablet-PC with protective case
02
Screwdriver for battery exchange
INTROVIEW® Pro Software
Explore the capabilities of our INTROVIEW® Pro software, an essential component included in the standard delivery set of our instrument.
Remote Control and Real-time Visualization
Operate your MIRA 3D unit from anywhere with the user-friendly interface of INTROVIEW® Pro. Whether on-site or at a distance, you have full control for seamless assessments.

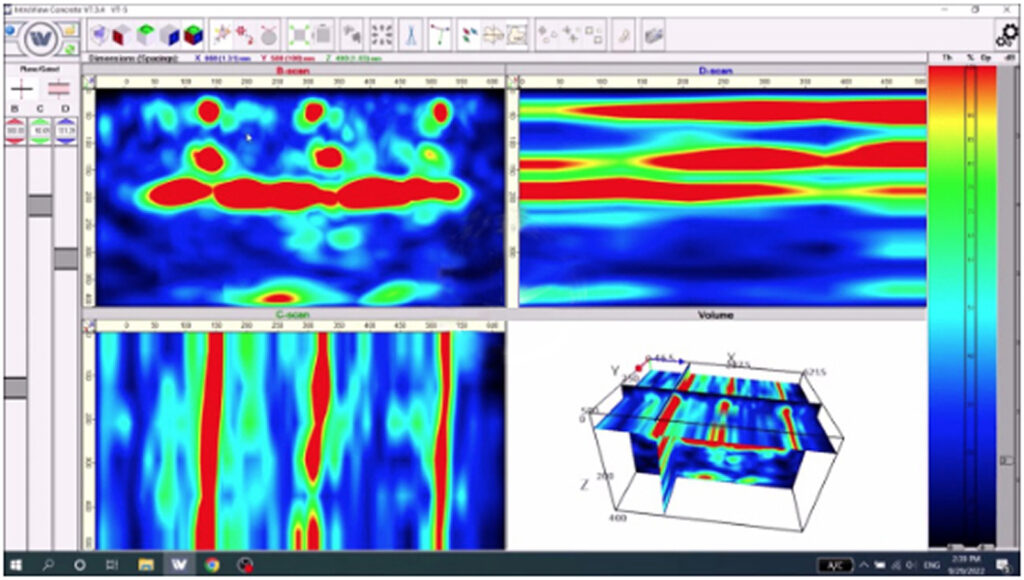

Advanced 3D Visualization and Big Data Analysis
Experience concrete assessment with our 3D visualisation capabilities like never before. INTROVIEW® Pro provides a comprehensive view of your data, allowing for in-depth analysis of even the most complex structures. Make informed decisions backed by precise insights.
Customised Developments for Your Unique Needs
INTROVIEW® Pro supports an open data format, enabling users to tailor the software for specific offline and online applications. This flexibility ensures that our software adapts to your individual requirements.
MIRA NEO – Application Software

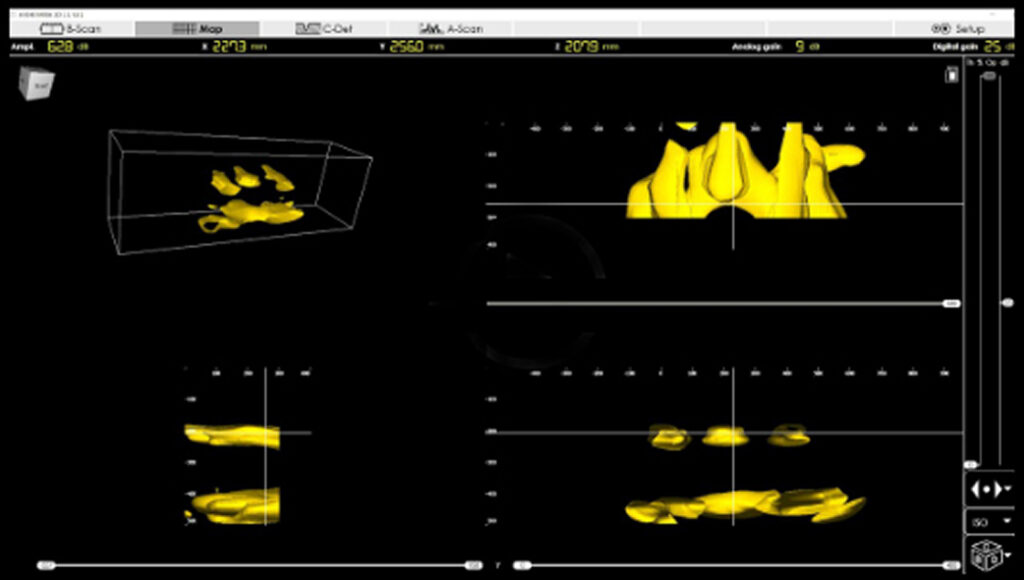

The desktop software application for acquisition and post-processing of the A1040 MIRA 3D data. The application software MIRA NEO is dedicated to acquisition of measurement data of the ultrasonic tomography system A1040 MIRA 3D in automated inspection systems. Further, the MIRA NEO software offers the full-scale 2D and 3D visualization and analysis tools for post-processing collected data of A1040 MIRA 3D.
INTROVIEW CONCRETE
Aging civil infrastructure made of concrete and reinforced concrete puts new requirements to the quality assurance concepts allowing integral assessment of infrastructural objects. Ultrasonic testing with its unique deep penetrating capability offers substantial opportunities for visualization and evaluation of the internal structure of large constructions. On the other hand, large dimensions of the inspection objects hinder the evaluation of the inspection results beyond inconclusive single data acquisitions in «local» measurement positions.
