A1221 ANCHOR
Ultrasonic Pulse-echo Flaw Detectors
Ultrasonic Anchor Bolt Testing
An ultrasonic low-frequency tester for in-situ quality assessment of concrete anchors, solid rebars and reinforcement.
Product Description

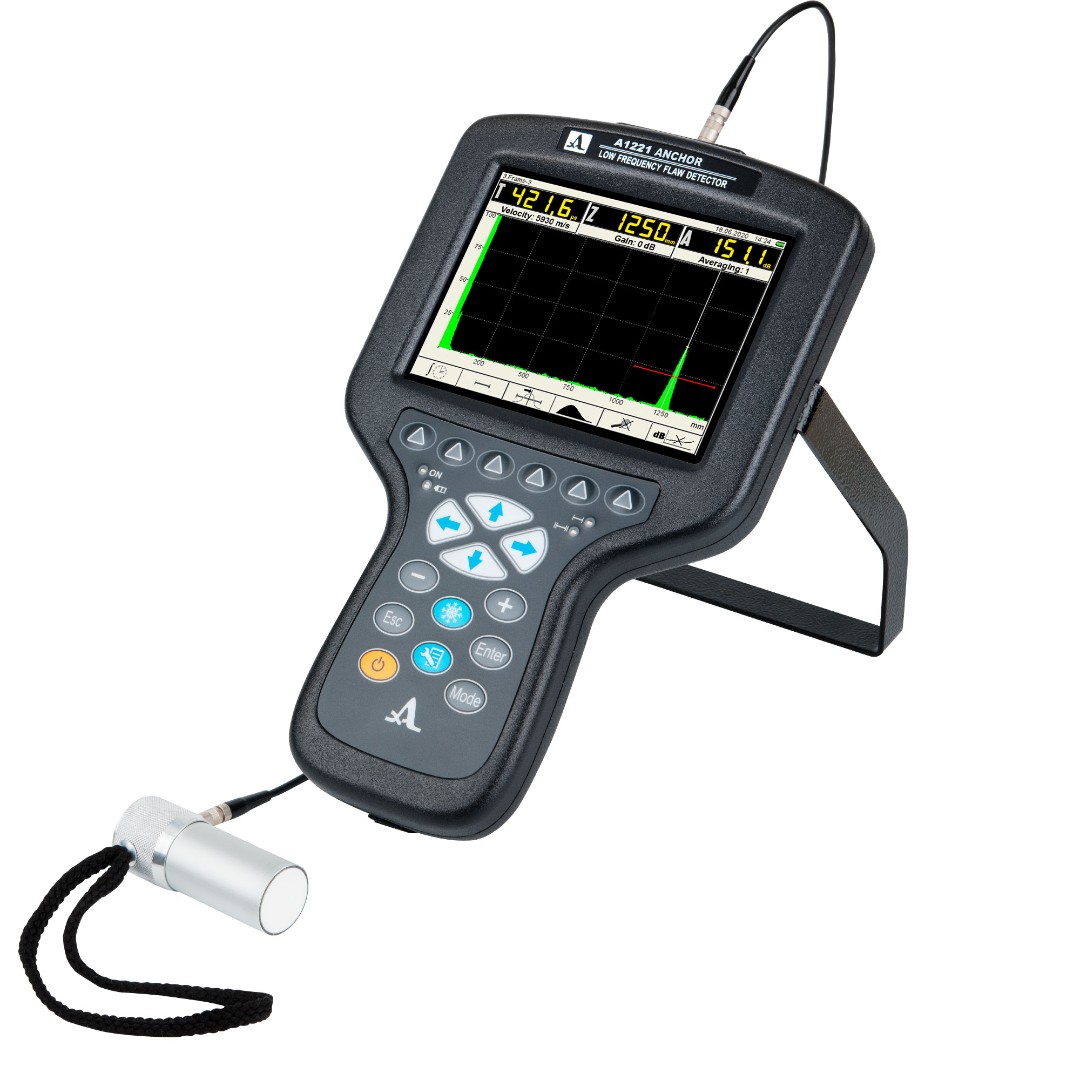

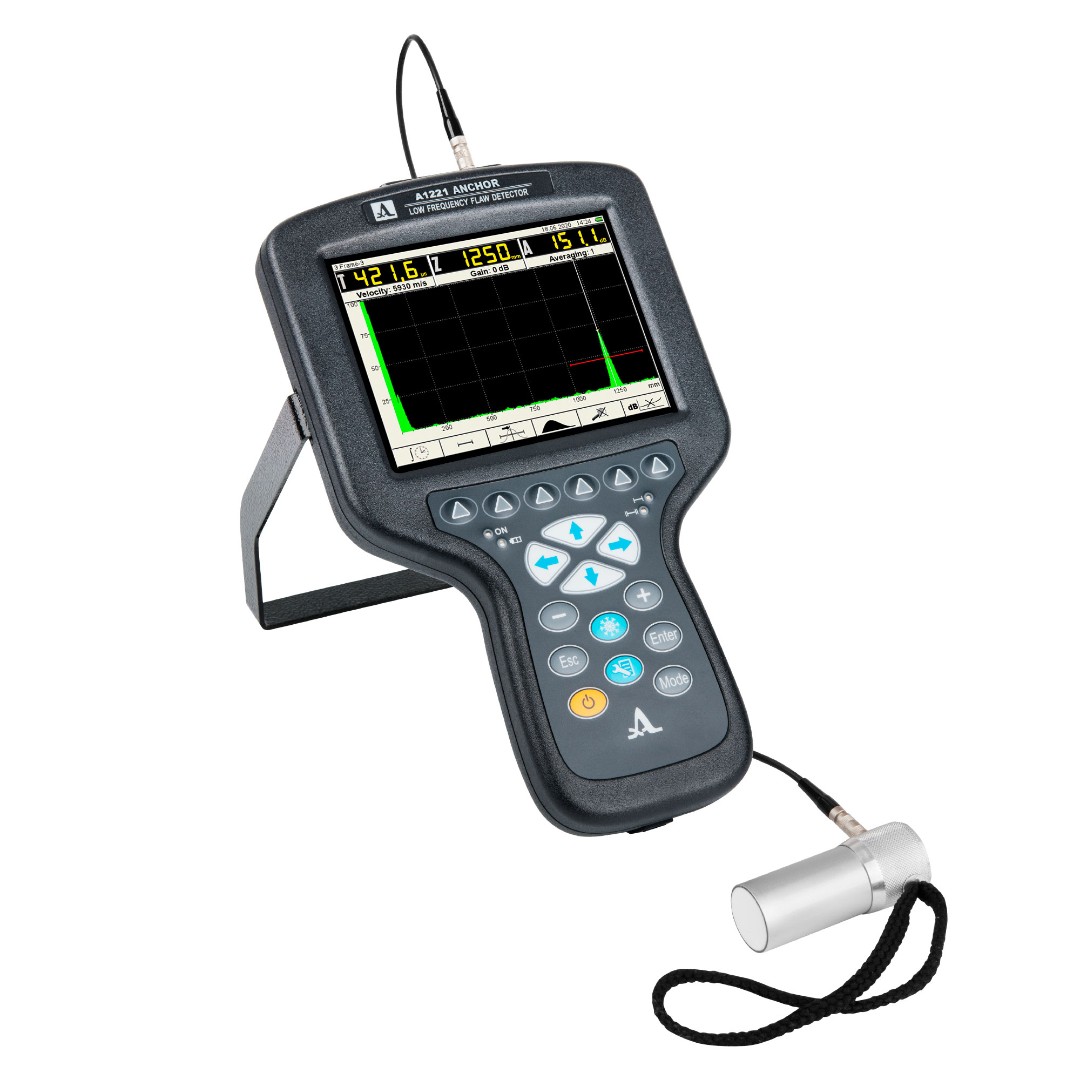

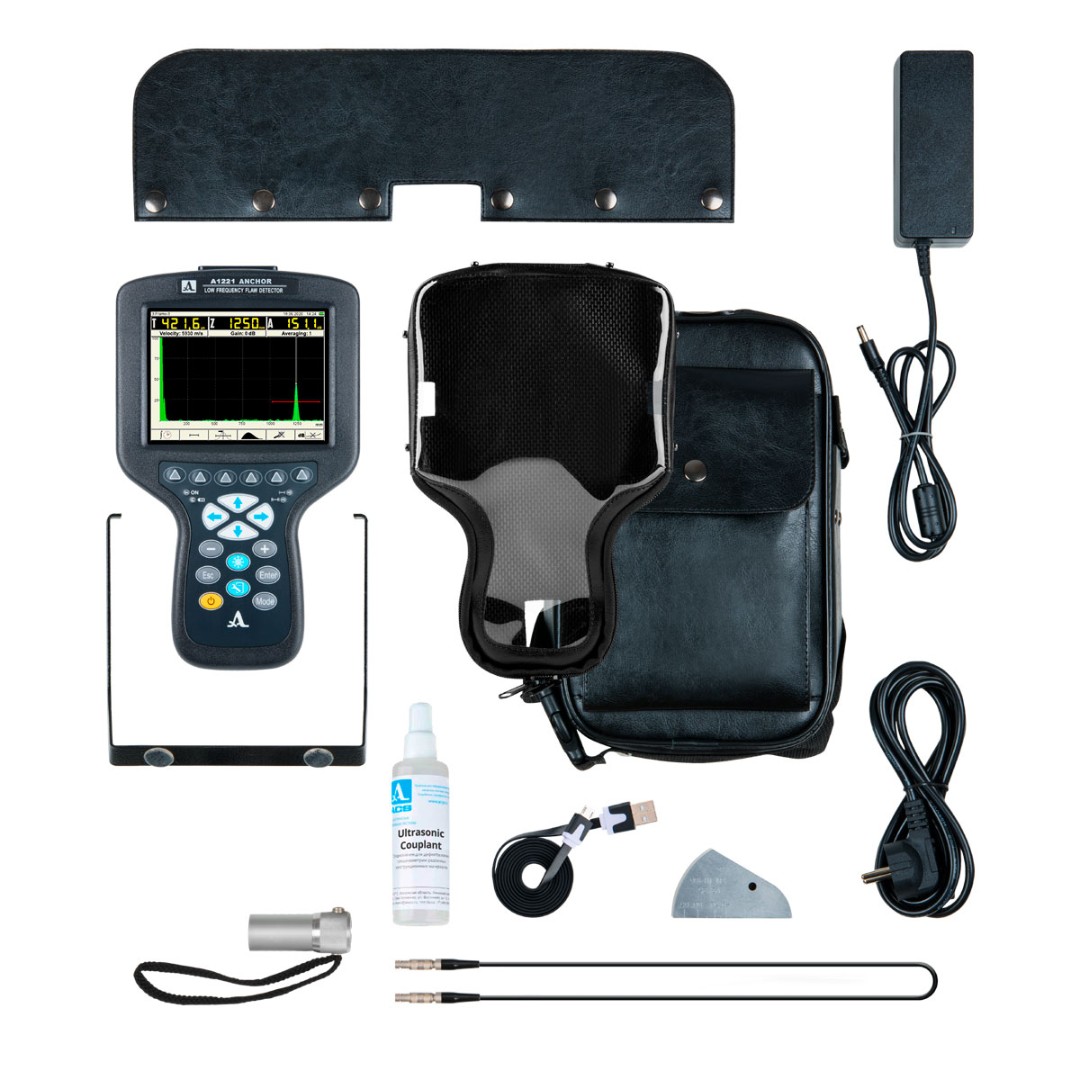

A1221 ANCHOR is an ultrasonic instrument for in-situ evaluation of embedded metallic elements by means of low-frequency ultrasonic waves.
Application
The main application field of A1221 ANCHOR is the non-destructive testing of anchor bolts and similar structural elements.

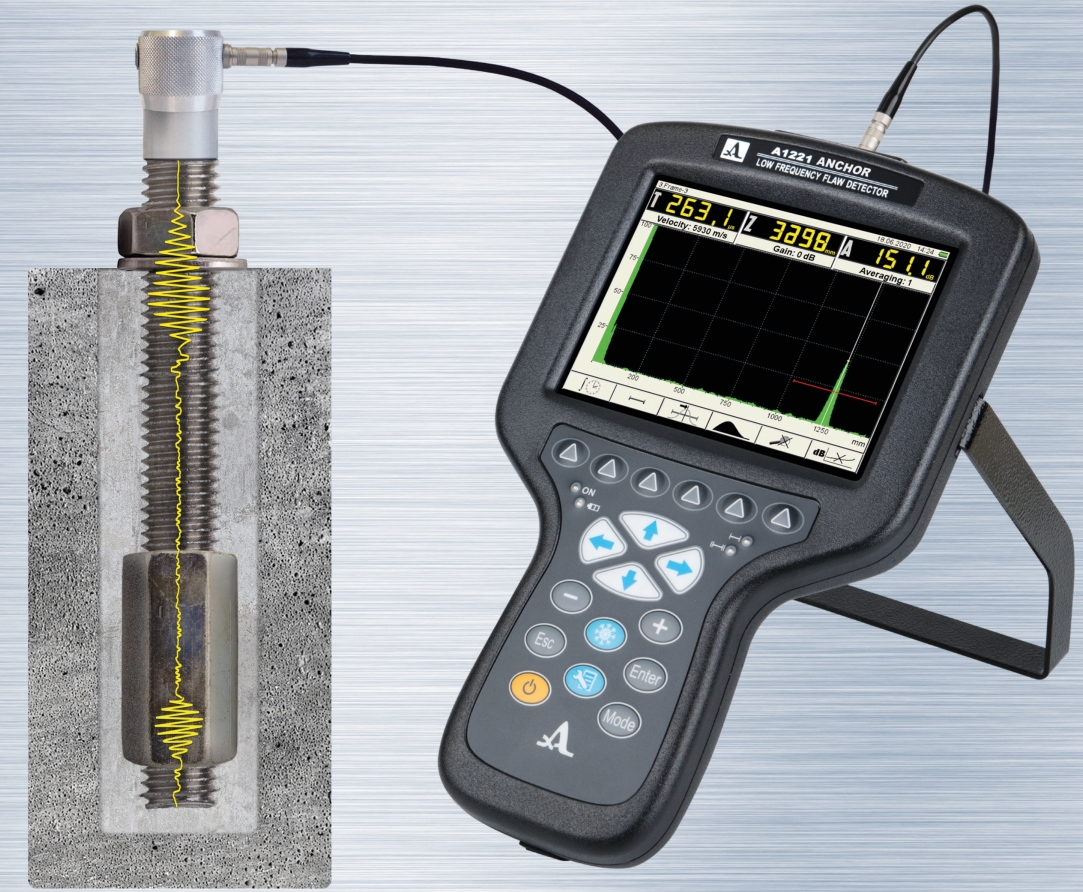

Following evaluations can be performed by placing ultrasonic transducer on the free outer end of the bolt:
- Detection of anchor breaks
- Residual length/fraction assessment
- Adhesion quality assessment
Application features:
Assessable bolt / rebar diameter
Not grouted assessment length
Minimal assessment length
Assessable grouting depth in concrete
Assessable grouting depth in rock
20-40 millimeters (0.8-1,6 inch)
up to 8 meters (26.3 feet)
0.3 meter (9.8 feet)
up to 1 meter (3.3 feet)
up to 4 meters (13.1 feet)
Parameter
Value
Parameter
Value
Operating frequency range, kHz
25-250
Gain setup range, dB
0-100, step 1
Maximal data acquisition length, μs
4000
Number of the programmable points of DAC function
24
Assessment length,m
0.5-3
Dynamic range of DAC function, dB
30
Assessment length of embedded rods, m
up to 1
Power supply
Built-in battery
Assessable rod diameter range, mm
20-40
Operation time, h
14
Material velocity range, m/s
500-15000
Battery charging time, h
3
Transmitter output voltage, V
±20, ±100, ±200
Display type
TFT (640 х 480)
Transmitter pulse form
Bipolar meander, 0.5÷5.0 periods
Electronic unit dimensions, mm
260×156×43
Pulse repetition rate, Hz
1-45
Electronic unit weight, kg
0.8
Operational conditions
Operating temperature range, ºC
from -20 to +45
Relative air humidity at +35°С, %, max
95
